JIANGNAN YIFAN MOTOR CO., LTD

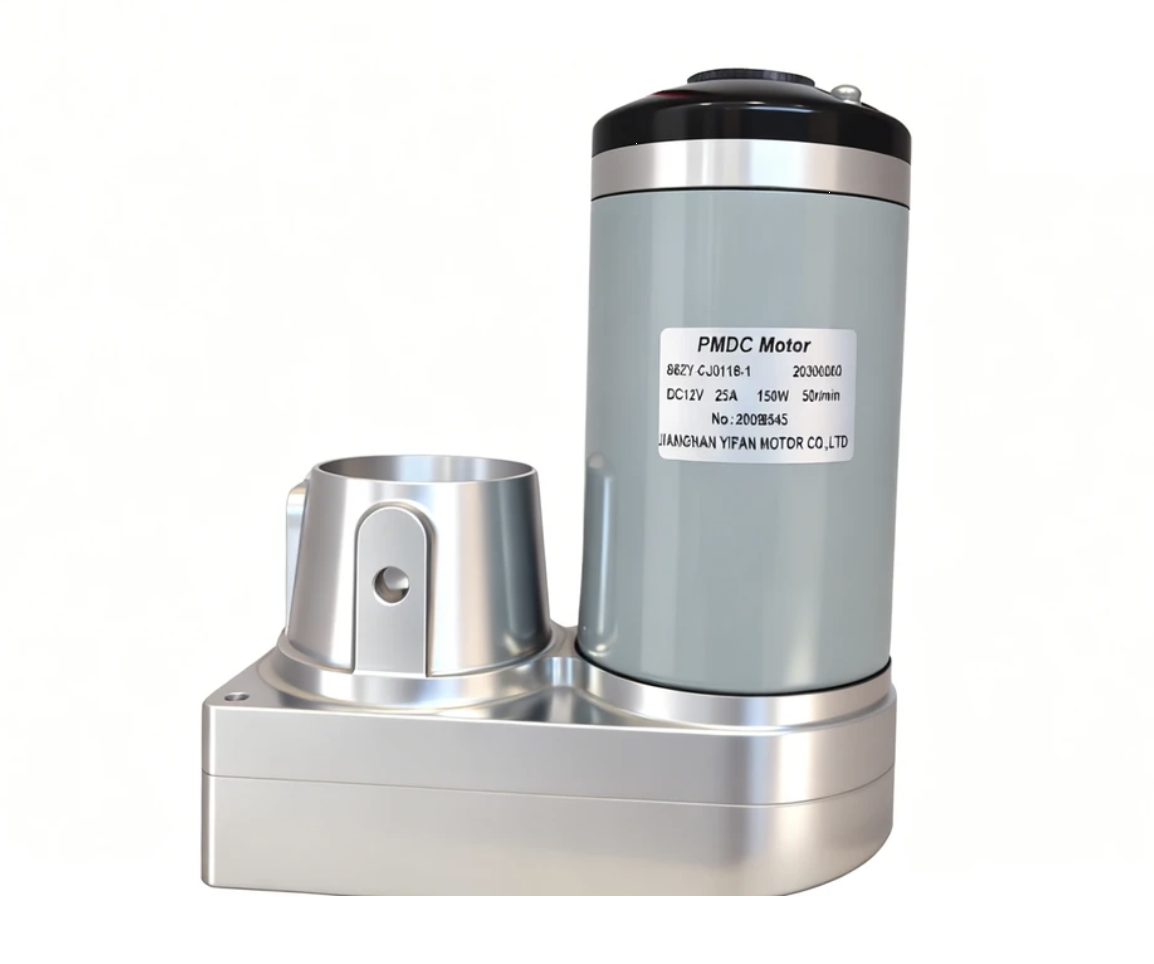

Yifan Motor Brush DC Gear Motor 12V 120W, 86ZY-CJ0118-1, For RV Landing Leg or Leveling Leg or Tongue JACK
PMDC Brush Gear Motor- Model Number86ZY-CJ0118-1
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
ApplicationRecreational Vehicle / RV / Motorhome / Camper / Caravan / Travel Trailer / Campervan / Fifth Wheel / Popup Camper / Conversion Van / Mobile Home
FeaturesHigh-performance permanent magnet materials: The use of high-performance permanent magnet materials (such as neodymium iron boron) can provide a stable magnetic field and enhance motor efficiency. Compact size: RV space is limited, so the motor design must be compact and easy to install and maintain. High torque output: Provides higher starting torque and operating torque at lower speeds to ensure that the mechanism can reliably expand and retract. Good speed regulation performance: Good speed regulation performance is usually required so that the user can control the speed of the expansion mechanism and the jack. Corrosion-resistant and waterproof: Since RVs may be used in a variety of environments, motors are often designed to be corrosion-resistant and waterproof to accommodate different climate conditions. Low-noise design: There is a high demand for a quiet environment when traveling, and the motor is designed to be low-noise during operation to avoid disturbing the comfort of the occupants. Overload protection: Built-in overload protection prevents damage to the motor due to excessive load. Easy to integrate control: The motor can be integrated with the RV’s control system and operated via a remote control or smart device. Energy-saving and efficient: While meeting power requirements, the design is optimized to reduce energy consumption and improve overall efficiency. Long Life: Designed to operate for long periods of time and withstand frequent operating conditions, reducing maintenance needs and frequency of replacement.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | System of Work (min) |
| 86ZY-CJ0118-1 | 12 | 19.5 | 22 | 52 | 120 | S2 |
Mechanical dimensions
Performance curve
