JIANGNAN YIFAN MOTOR CO., LTD

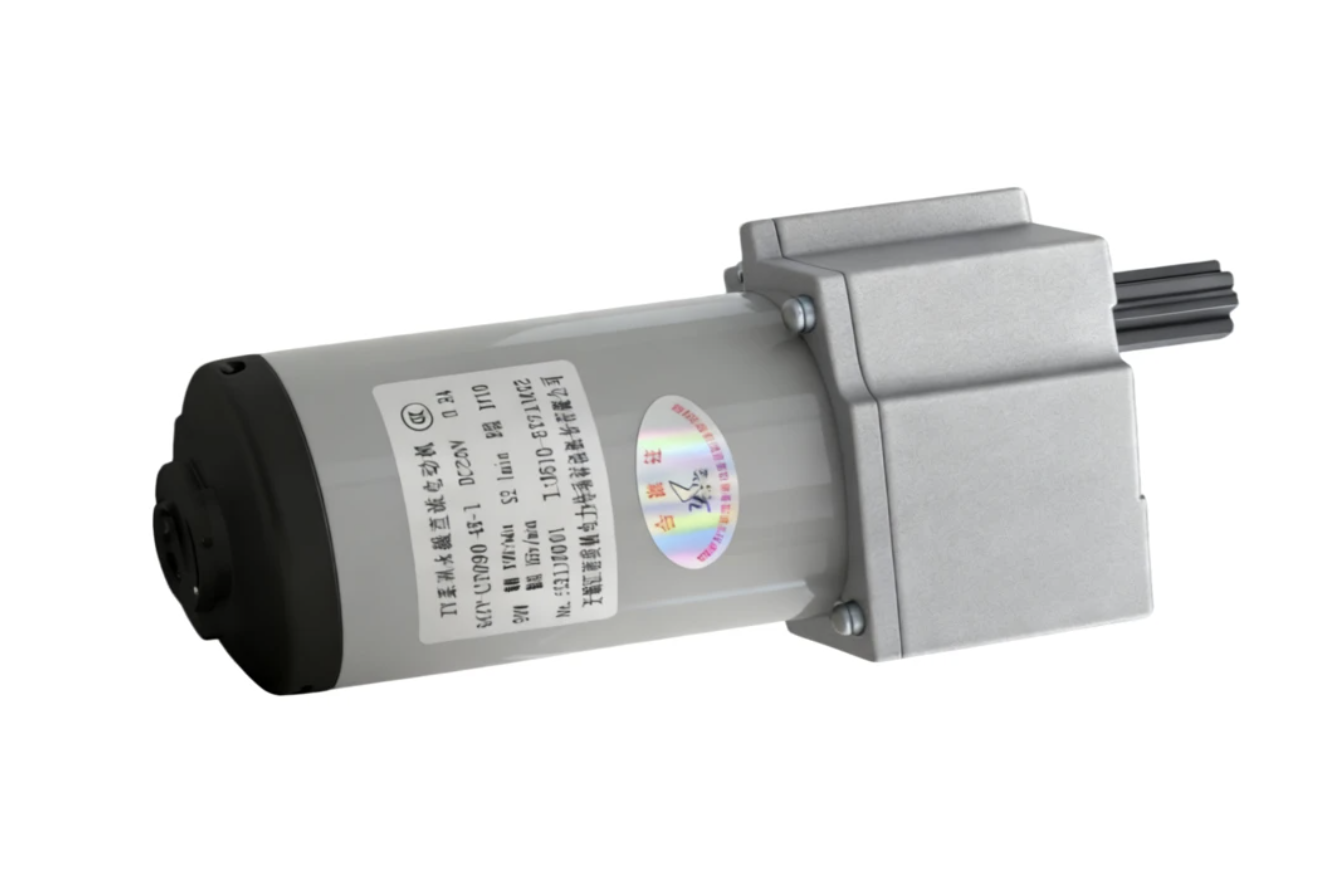

Yifan Motor Brush DC Gear Motor 220V 90W, 64ZY-CJ2090-6B-1, For Circuit Breaker and Switchgear
PMDC Brush Gear Motor- Model Number64ZY-CJ2090-6B-1
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
ApplicationMedium and high voltage circuit breaker / medium and high voltage isolating switchgear / grounding switchgear / SF6 circuit breaker / high voltage vacuum circuit breaker / circuit breaker chassis vehicle
FeaturesHigh efficiency: Due to the use of permanent magnet materials, high working efficiency can be maintained under different loads.
Compact structure: The reducer and motor are integrated in design, small in size, and easy to install in the limited space of the circuit breaker.
Stable torque: Permanent magnet DC motors can provide smooth torque output and are suitable for circuit breakers that require precise control of opening and closing speed.
Good starting performance: The brushed motor has a large starting torque and can quickly respond to the operating command of the circuit breaker.
Longer life: Using high-quality permanent magnet materials, the shaft and gears are made of alloy steel, the motor can have a long service life under normal use.
Low maintenance costs: Brushed motors have a simple structure, making repairs and replacement of parts relatively easy and low-cost.
Cost-effective: Permanent magnet brushed DC geared motors are widely used due to their cost-effectiveness.
Noise level: Permanent magnet brushed DC motors have lower noise levels than AC motors.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | System of Work (min) |
| 64ZY-CJ2090-6B-1 | 220 | 0.8 | 5.55 | 155 | 90 | S2 |
Mechanical dimensions
