JIANGNAN YIFAN MOTOR CO., LTD

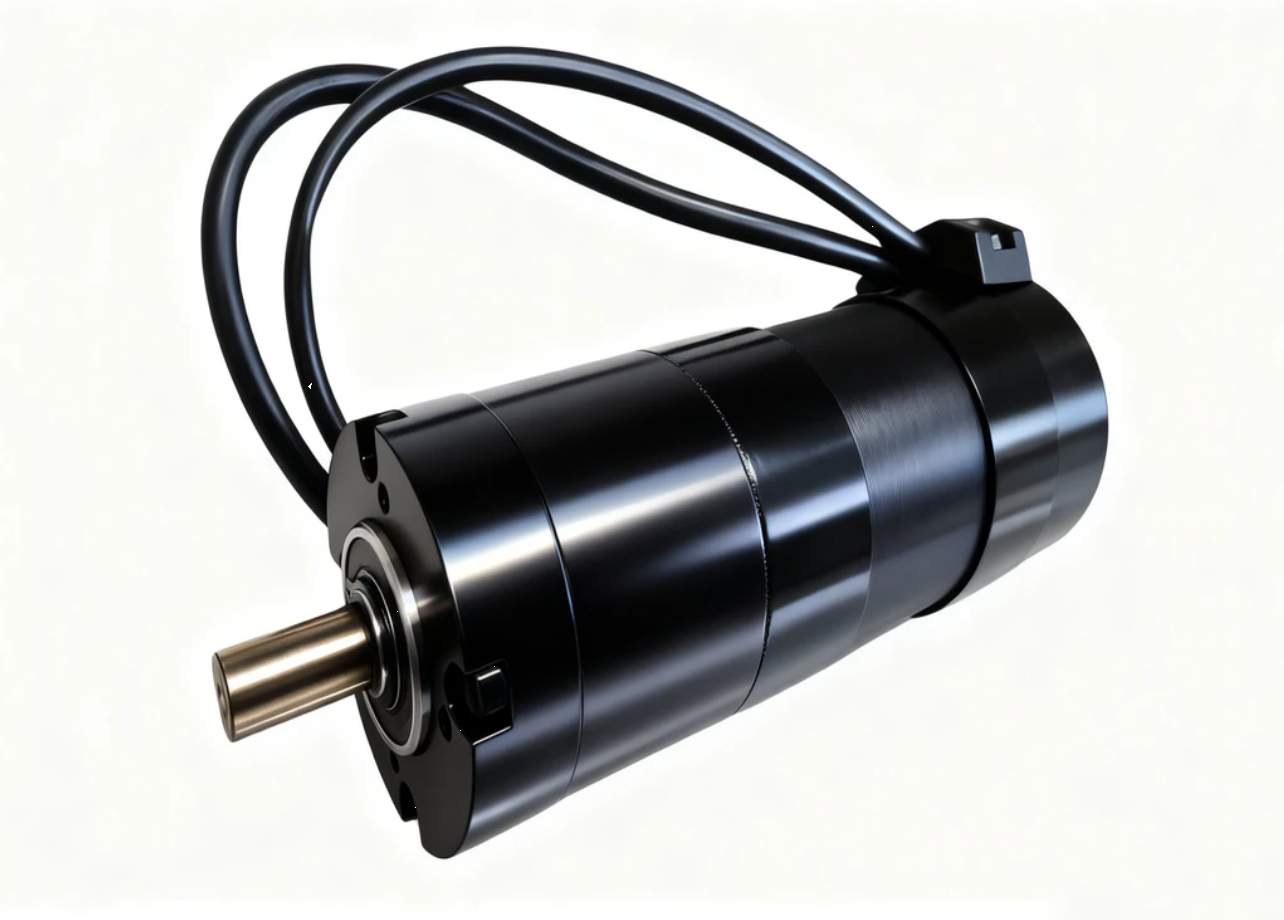

Yifan Motor Brushless DC Gear Motor 24V 100W, Y59BL10-2430-J50, For Gate Barrier
BLDC Gear Motor- Model NumberY59BL10-2430-J50
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
ApplicationGate Barrier / Boom Barrier / Arm Barrier / Bollard Barrier
FeaturesHigh efficiency: Brushless motors have higher operating efficiency than brushed motors due to their electronic commutation method.
Long life: Brushless motors typically have a longer life due to the lack of brush and commutator wear issues.
Low maintenance requirements: Brushless motors do not require regular replacement of carbon brushes, reducing maintenance and downtime.
High-performance control: Brushless motors are often used with electronic controllers to precisely control speed, position, acceleration, etc.
Low Noise and Vibration: Because brushless motors have smooth electronic commutation and no physical brushes in contact, they generally operate quieter and vibrate less.
Programmable: Along with the advanced control system, the parameters of the brushless reduction motor such as speed, torque, acceleration, etc. can be adjusted and optimized through software.
Compact size and weight: The design of brushless geared motors makes them generally smaller and lighter than brushed motors of equivalent power.
Wide temperature operating range: They are capable of stable operation over a wide ambient temperature range and are suitable for outdoor applications.
Powerful starting torque and good speed stability: Provides greater starting torque and maintains speed stability even at low speeds.
Energy Saving: Due to their high efficiency, brushless geared motors save energy during operation.
Fast response: Electronic control can realize the requirement of brushless motor to respond quickly to instructions.
Self-protection functions: Many brushless motors have overload, overheating and other protection functions to prevent motor damage.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | IP Rating |
| Y59BL10-2430-J50 | 24 | 6 | 18 | 55 | 100 | 65 |

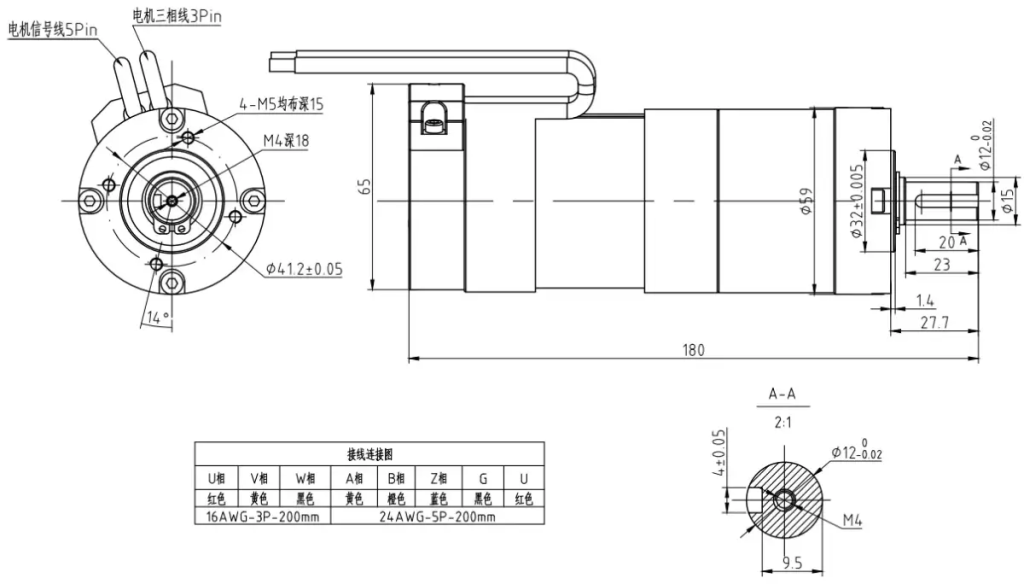

Mechanical dimensions
Performance curve
