JIANGNAN YIFAN MOTOR CO., LTD

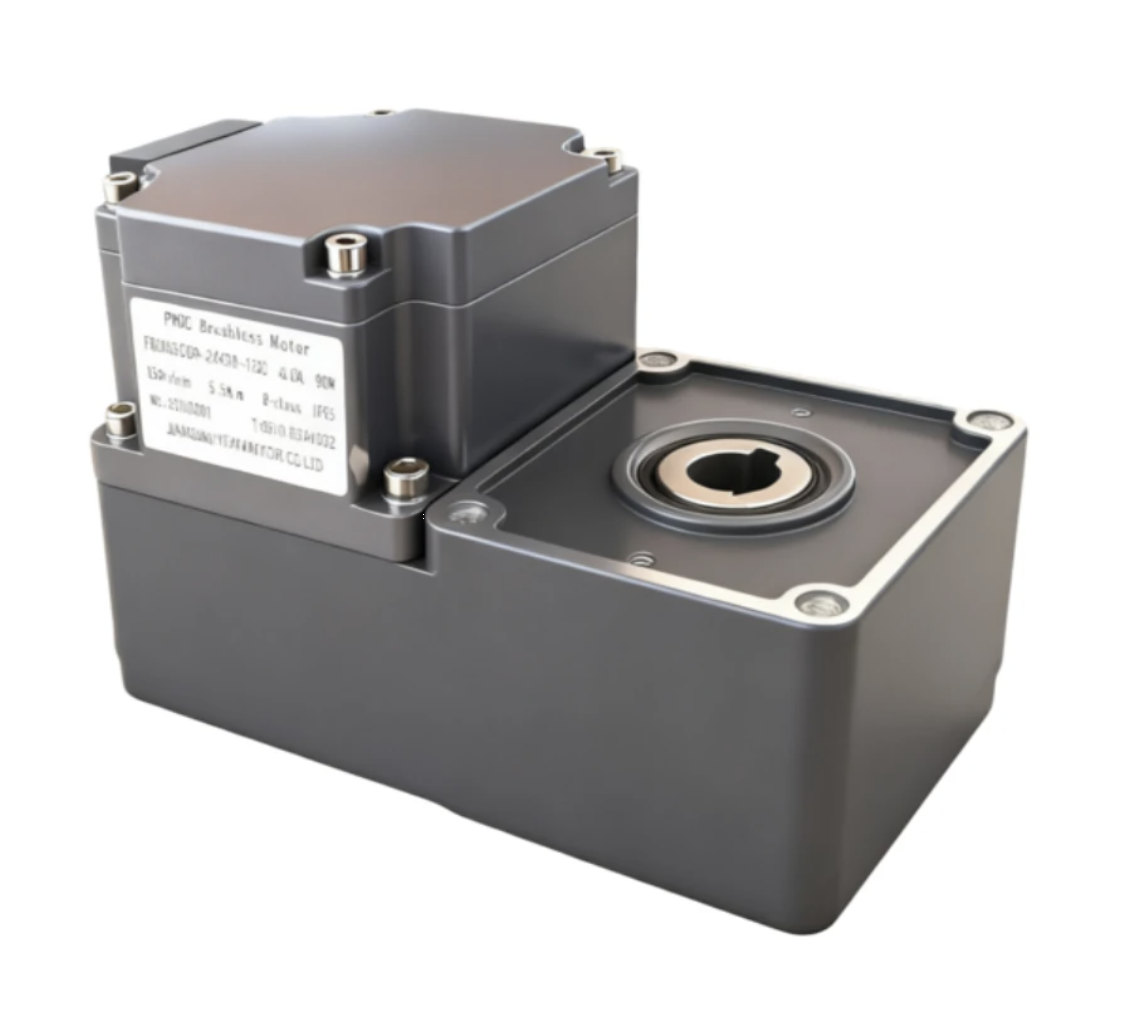

Yifan Motor Brushless DC Gear Motor 24V 120W, F80BS12-2430-J20, For Solar Cleaning Robot
BLDC Gear Motor- Model NumberF80BS12-2430-J20
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
ApplicationSolar cleaning robot / Solar panel cleaning robot / Solar module cleaning robot
FeaturesHigh efficiency: Brushless motors are designed to provide higher power density and efficiency, suitable for applications requiring long cycle operation.
Longer Life: Since there are no carbon brushes, there is less wear and tear, which means brushless motors typically have a longer life than brushed motors.
Low Maintenance: The lack of carbon brushes reduces maintenance requirements as worn parts do not need to be replaced regularly.
High torque: The reduction mechanism can increase the torque output and meet the demand for high torque while maintaining a relatively small size.
Precise control: Brushless motors are often paired with electronic controllers, allowing for more precise speed and position control, which is critical for cleaning jobs.
Silent Operation: Brushless motors emit relatively low noise levels, which is especially important in residential areas or environments where low-noise operation is required.
Environmental Adaptability: Designed to withstand harsh external environments, such as dustproof, waterproof rating, which is an important feature especially for cleaning robots used in outdoor applications.
Ease of integration: Typically the shapes and sizes of these motors are standardized, making them easy to integrate into different brands and types of solar panel cleaning robots.
Adjustable Speed: Brushless geared motors can be easily adjusted for speed via a frequency converter or electronic speed controller.
Energy feedback: In some designs, when the robot goes downhill or slows down, the motor can be used as a generator, feeding part of the energy back to the battery.
Excellent heat dissipation: Good heat dissipation design ensures that the motor can maintain stable performance even under continuous operating conditions.
Compatibility: Brushless geared motors can be designed to be compatible with a variety of power options, including direct power from solar panels or use with batteries.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | IP Rating |
| F80BS12-2430-J20 | 24 | 7.0 | 5.58 | 3000 | 120 | 65 |
Mechanical dimensions
