JIANGNAN YIFAN MOTOR CO., LTD

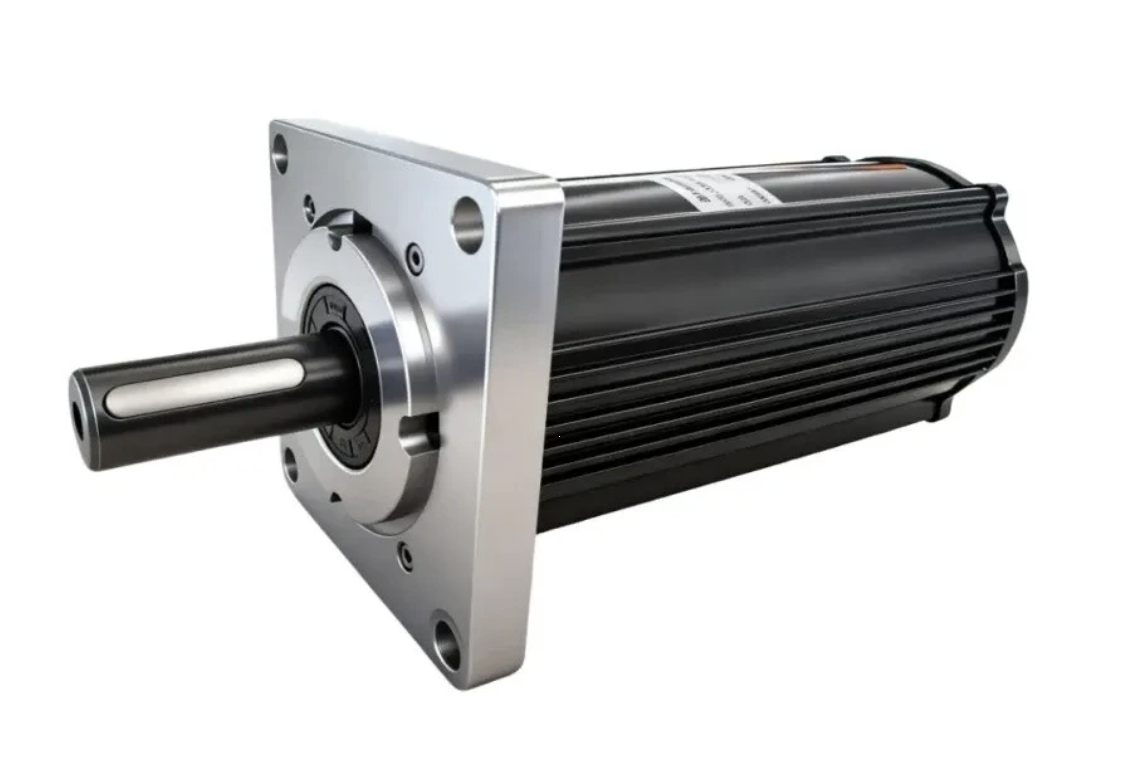

Yifan Motor Brushless DC Gear Motor 24V 95W, Y97BL09-2423-J776, For Solar Tracker
BLDC Gear Motor- Model NumberY97BL09-2423-J776
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
ApplicationSolar tracker/ Sun tracker / solar tracking system /Sun Tracking System / Tracker Sun Hunter / Photovoltaic (PV) Tracker / Solar Panel Tracker / Solar Module Tracker / PV Panel Tracking System / Solar Energy Tracker
FeaturesHigh efficiency: BLDC motors are generally very efficient and can convert electrical energy into mechanical energy more efficiently than brush motors.
Long life: Because brushless motors have no carbon brushes, which reduces wear and tear, they generally have a longer service life than brushed motors.
Low maintenance: The absence of carbon brush components means brushless motors do not require regular replacement of carbon brushes and require less maintenance.
High reliability: Due to its simple structure, small component wear, lower failure rate and better reliability.
Low noise: Brushless motors emit less noise when running than brushed motors, which is especially important in noise-restricted areas.
Smooth torque: The torque provided by the BLDC motor is relatively smooth, without torque fluctuations caused by brushes.
Precise control: With the appropriate driver and control system, brushless motors can achieve very fine speed and position control.
Fast response: The brushless motor responds quickly to acceleration and deceleration, and can quickly adapt to changes in the sun’s position.
Strong environmental adaptability: The design of BLDC motor enables it to work normally in a variety of environments, including high temperature, low temperature and high humidity environments.
Energy saving and emission reduction: High efficiency means less power waste, which is in line with the sustainable development concept of solar power generation.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | IP Rating |
| Y97BL09-2423-J776 | 24 | 6.0 | 300 | 3 | 95 | 65 |
Mechanical dimensions
