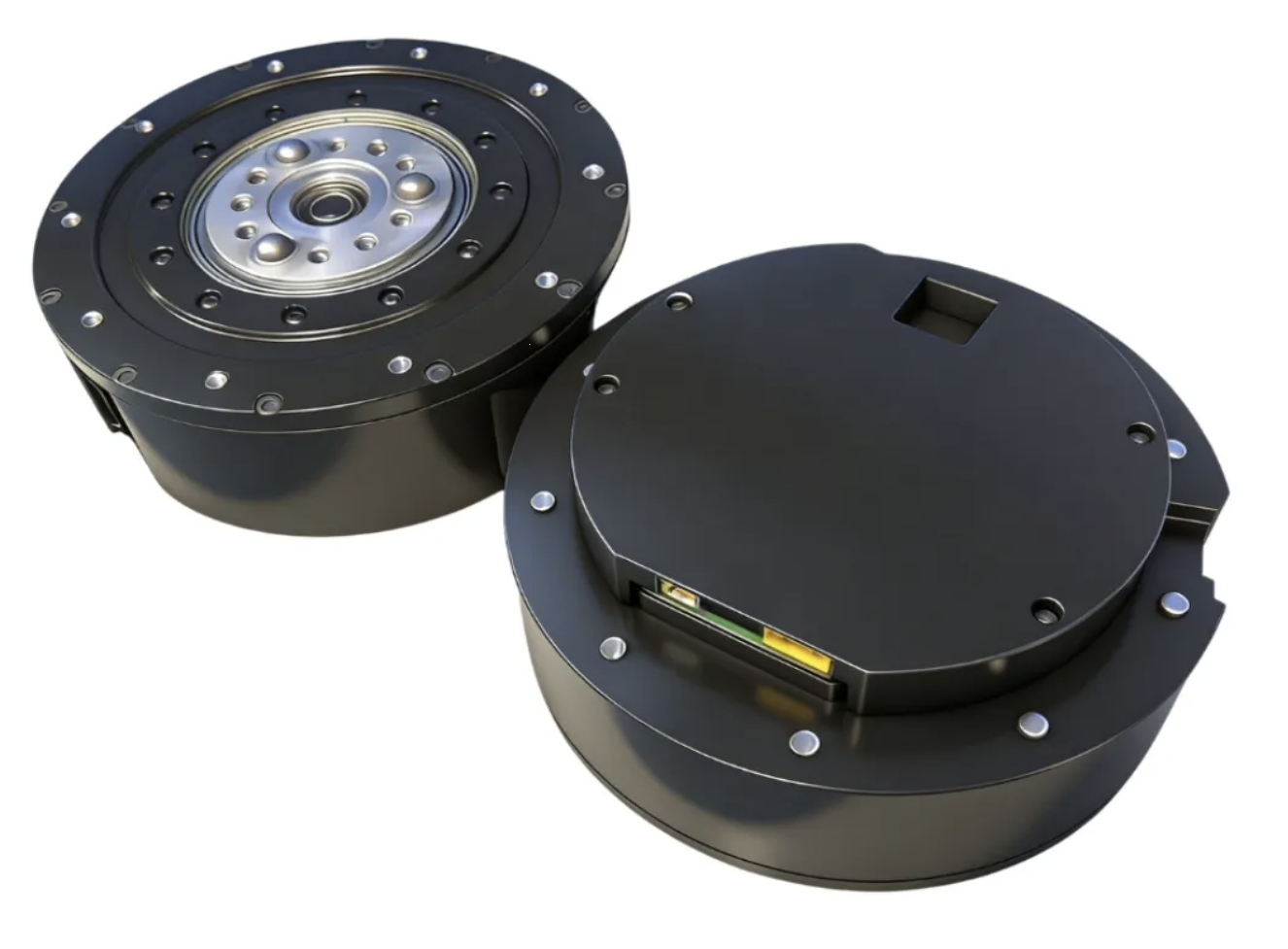

Yifan Motor Brushless DC Joint Gearmotor 48V 700W, Y120BL70-4815-J09, For Robot Joints
BLDC Gear Motor- Model NumberY120BL70-4815-J09
- Brand NameYifan Motor
- Min. Order1 Piece
- FOB PortShanghai
- Lead Time30 – 45 days
- Country of OriginChina (mainland)
Product Details
Application
Robot Joints / Robotic joint / Revolute joint / Spherical joint
Features
High Torque Density & Short Structural Length ：Outputs greater torque within a limited volume, saving installation space and facilitating miniaturized joint design.
High Precision Positioning & Low Hysteresis ： Precision reduction mechanism + optional high-resolution encoder meets the requirements for repetitive positioning and trajectory tracking.
Low Inertia & Fast Response :The brushless DC motor itself has low inertia, combined with a rigid reducer, improving closed-loop control response speed and dynamic performance.
High Efficiency & Low Heat Generation:Optimized motor and gear matching results in low energy loss, suitable for long-term continuous operation.
Multiple Reduction Schemes Available:Offers planetary reduction, harmonic reduction, and other schemes to balance efficiency, accuracy, and size.
Compatible with Mainstream Communication and Feedback Interfaces:Supports incremental/absolute encoders and can be used with control buses such as CANopen and EtherCAT (customizable).
High Reliability and Protection Rating:Optimized sealing/lubrication, supports spraying/protective treatment, achieving industrial-grade IP rating (by model).
Easy Integration and Maintenance:Standard flanges and mounting holes, replaceable encoders, and simplified electrical connection design.
Specification Parameters
| Motor Model | Rated Voltage (VDC) | Rated Current (A) | Rated Torque (Nm) | Rated Speed (r/min) | Rated Power (W) | IP Rating | System of Work (min) |
| Y120BL70-4815-J09 | 48 | 25 | 40.0 | 167 | 700 | 41 | S1 |
Mechanical dimensions
